Product Overview

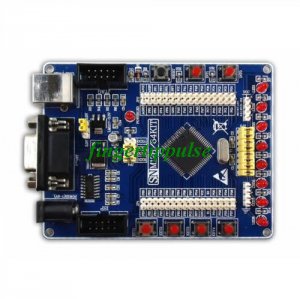

AVR mega128Mini Development Board provides easy way for developing and prototyping with the new mega128high-performance, microcontroller produced by ATMEL. AVR mega128 Mini Development Board has ISP and JTAG port for programming and debugging, 2 UART, 8 status Leds, 4 user Buttons,INT0&INT1, and all of the GPIOs are taken out to make them available for further connections.
Board Features
- CPU: mega128 microcontroller
⑴ISP 5x2 pin connector for in-circuit programming with AVR Programmers .
⑵ jtag 5x2 pin connector for in-circuit programming and Simulating.
⑶ 7805,LM1117 and filtering capacitors.Two kinds of power supply: 6V-12V external power supply and 5.0V USB power supply.
⑷ System power supply selection:5V/3.3V.
⑸ Quartz crystal oscillator circuit 1-16Mhz.
⑹Reset circuit.
⑺ Status LED connected to I/O PC port via removable jumper.
⑻ 1 RS232 DB-9 female connectors.
⑼MAX232 circuit.
⑽ 4 independent keys
⑾ 2 External Interrupts:int0 and int1
⑿PCB, 1.6 mm , blue solder mask, white silkscreen component print .
⒀Dimensions: 77mmx100mm
Packing List:
This product should include the following components:
AVR mega128 Mini Development Board, 1 pcs;
USB power supply cable, 1 pcs;
（CD/DVD is not included in the Package,but we will sent the data to you via e-mail.）
