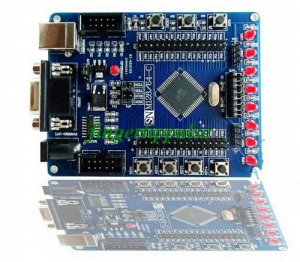

Development kit Board for ATMEL AVR Mega128 ATMEGA128
Hardware resources and experiment:
1.8 leds , show I/O STATUS
2.4*1 Independent keyboard,simulate the detection of input
3.1 RS232 port communication and connection with PC or other devices with a DB9 connector
4.1 ISP Port
5.1 JATG Port
6.All pins are taken out on IDC connectors to make them available for further connections
7.External power supply: Input (DC 6-12V Input), VCC can select 5V or 3.3V
8.Three kinds of power supply : usbasp programmer/usb /6-12external power
Package:
1 pcs ATMEL AVR ATMEGA128 Development Board
1 pcs USB Cable and 1 10pin jtag cable
1 pcs cd drviver,some wrote in Chinese(please note).
