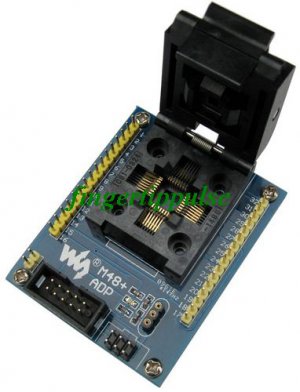

This auction is for M48+ ADP
--------------------------------------------------------------------------------
Yamaichi IC Test & Burn-in Socket with a simple board, especially for AVR TQFP32 package
Features
10-pin/6-pin ISP Port for programming or testing
External crystal can be connected via on board socket
All the MCU pins are accessible on expansion connectors
Supported Devices
ATmega48 TQFP32 package and other pinout compatible devices of the same class
ATmega48 / ATmega88 / ATmega168 / ATmega8
ATmega48PA / ATmega88PA / ATmega168PA / ATmega8A
ATtiny48 / ATtiny88
--------------------------------------------------------------------------------
ISP Port Header Pinout
The M48+ ADP houses ISP headers for connecting a programmer. The header pinouts are shown in the figures below.
Figure 1. 10-pin ISP header pinout
Figure 2. 6-pin ISP header pinout
--------------------------------------------------------------------------------
Photos
--------------------------------------------------------------------------------
Package Contains:
M48+ ADP
USB Cable for sourcing power (2-pin connector)
TE65
