Features:
mega128 has a very excellent performance, in the same MCU has great advantages in the current embedded systems development, widely used
Ideal for the Student or Hobbyist to start developing and testing your AVR projects with this multi-featured and Development board
Abundant on-board resources: LED, digital tube, key-press, keyboard matrix..
All I/O ports are open externally with pin and short shunts , especially for DIY .
MEGA128 development board hardware resources and avaliable experiment:
8-bit dynamic scan LED digital tube
8-bit LED light-emitting diodes.
8 input keys, a reset button for key scanning experiment
LCD1602 and LCD12864 LCD interface for LCD display experiment
JTAG emulation interface
AVR ISP download interface.
I2C-bus device 24C02, EEPROM data memory, 8kBit EEPROM.for
An active buzzer.
RS232 serial communication experiment
IO port output experiments,
IO port input experiment
water lamp experiment,
Stepper motor experiment
Timer / Counter Experiments
ADC0 and ADC1 experiment
DC motor experiment
Two servomotor experiment (PWM control)
All the IO port all the leads to facilitate the expansion experiments and testing.
Pckage include:

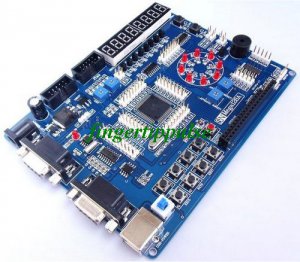

1x development board with Atemega128
1x USB powr cable
1x 232 cable
1x CD ROM including Board Schematic , Sample code software ,demo,etc.
(Notice: this item NOT include download adapter and JTAG AVR Emulator )
