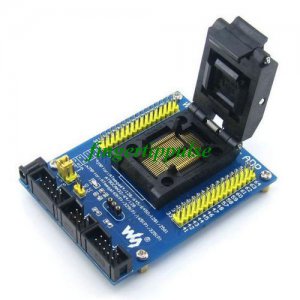

This auction is for M64+ ADP
--------------------------------------------------------------------------------
Yamaichi IC Test & Burn-in Socket with a simple board, especially for AVR MCUs in TQFP64 package
Features
More programming interfaces for burning or testing
JTAG port
10-pin/6-pin ISP port
External crystal can be connected via on board socket
All the MCU pins are accessible on expansion connectors
Supports two classes of devices
ATmega64 series
ATmega169 series
Supported Devices
ATmega64 device in TQFP64 package and other pinout compatible devices of the sort
ATmega64 / ATmega128 / ATmega64A / ATmega128A
ATmega645 / ATmega6450 / ATmega1281 / ATmega2561
AT90CAN32 / AT90CAN64 / AT90CAN128
ATmega169 device in TQFP64 package and other pinout compatible devices of the sort
ATmega169 / ATmega169P / ATmega329 / ATmega329P
ATmega165 / ATmega165P / ATmega325 / ATmega325P
--------------------------------------------------------------------------------
JTAG/ISP Port Header Pinout
The M64+ ADP houses JTAG/ISP headers for connecting a programmer. The header pinouts are shown in the figures below.
Figure 1. 10-pin JTAG header pinout
Figure 2. 10-pin ISP header pinout
Figure 3. 6-pin ISP header pinout
--------------------------------------------------------------------------------
Photos
--------------------------------------------------------------------------------
Package Contains
M64+ ADP × 1
USB Cable for sourcing power × 1 12
