Board Resources:
■ ISP 5x2 pin connector for in-circuit programming with AVR Programmers .
■ JTAG 5x2 pin connector for in-circuit programming and Simulating.
■ System power supply selection:5V USB Power supply / 3.3V
■ Quartz crystal oscillator circuit 7.3728 Mhz
■ Reset circuit key.
■ 8x Status LED connected to I/O
■ Two RS232 DB-9 female connectors (USART1 + USART2)
( RS232 MAX232 interface circuit with Tx, Rx, signals port.)
■ 8 independent keys
■ 2x External Interrupts :int0 and int1
■ 8x Digit 7-seg display
■ 10bit DAC TLC5615
■ ULN2003A for Stepper Motor
■ DS1302 Real Clock Chip.
■ DS18B20 Sensor
■ ADC0 potentionmeter x1
■ LCD1602 + LCD12864 + 1.8" 8-Bit TFT LCD interface
■ Buzzer x1
■ SD-Slot for FAT
■ PS/2 for Keyboard
Package includes the following item:

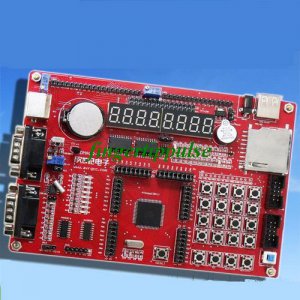

1. ATMEGA128 Development Board
2. USB Cable
3. 1.8" Color TFT LCD Modules
4. CD ROM
