8 LEDs are provided.
8 buttons are provided.
Reset buttons.
2 * RS-232 communication for connection with a PC or any other device with a DB9 connector
External power supply Input (DC 5V Input), VCC can select 5V or 3.3V,
All pins are taken out on IDC connectors to make them available for further connections.
ISP Port
JATG Port
HV PROGRAMMER Port
Clock selection – jumper for switch between various oscillation modes, to replace crystal vibration of different frequency as required by development of product.
also can support ATMEGA64/ATMEGA64L/ATMEGA128L
Chip's module
JATG PORT
ISP PORT
Package includes the following item:

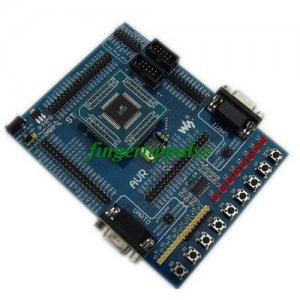

1: STK128+ Development Board kit for ATMEL AVR ATMEGA128 * 1 ( included 1pc ATMEGA128-16AU Chip Module )
2. USB Power Cable * 1
3: 4pin Experimental wire * 2
4. 2pin Experimental wire * 2
5: CD ROM(AVR Studio soft; Chip's datasheet; STK128+ Board Schematic..) * 1
