Specifications:
CPU: STM32F103VET6(ARM Cortex-M3), LQFP100; FLASH: 512K Bytes, SRAM: 64K Bytes
1 x JTAG debug interface
4 X Status LED, ONE Power LED
1 X RS232, supports 3-wire ISP.
1 X USB2.0 SLAVE device interface.
1 X USB to serial Converter, based on PL2303-HX.
1 X Micro SD (TF) card socket, interface with SDIO connection mode.
1 X 2.4-inch TFT (240X320 (with touch panel IC ADS7843) interface, can be controlled via MCU, FSMC 16-bit interface mode.
1 X SPI bus control M25P16 (16MB) serial Flash to store your data, like picture, character and so on!
4 X User buttons
1 x RTC with battery back-up battery holder(Battery is included).
Important GPIO port Lead out, convenient for your Application!
Board Size: 105MM X 79MM
Package Includes:

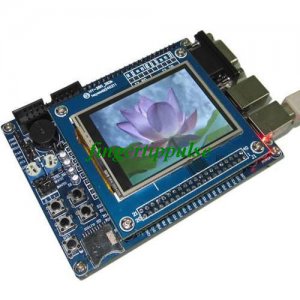

1 x STM32F103VET6 Development Board
1 x 2.4" TFT LCD with Touch Panel
1 x USB Cable
1 x DATA CD with Source code
1 x coin Battery
4 x fixed studs
