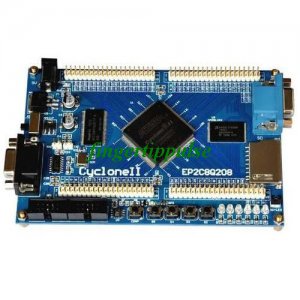

FPGA development board Altera EP2C8Q208 NIOSII FPGA learning board smallest system
Development board hardware resources:

1, CycloneII core: EP2C8Q208C8N:

2, SDRAM: HY57V641620;

3, NOR FLASH: AM29LV160;

4, EPCS4 4 M configuration chips;

5, VGA display interface (to VGA signal experiment);

6, serial ports MAX232 (computer communication experiment);

7, 6 a hair blue water light (to do the running water light);

8, SD 'seats;

9, core board active clock for 50 Mhz;

10. To provide configuration mode: JTAG and AS interface convenient simulation commissioning and download program;

11, board power adopt AMS1085 and AMS1117-ADJ voltage 3.3 v 1.2 v power supply module;

12, 4 independent button (do button control experiment);

13, user I/O all lead to;

Shipping list:

Development board x1;

5 V power x1;

DVD x2
