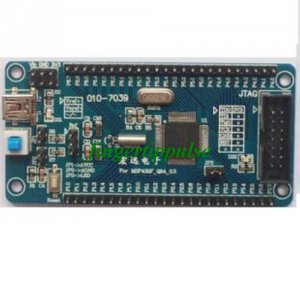

MSP430F169 minimum system is introduced:
1, on-board MSP430F169 chip
2, provide 32.768 KHz and 8 MHz two crystals connection
3, 3.3 V voltage power supply circuit, filter measures is complete
4, the power supply, with miniUSB reset circuit
5, on-board TI standard JTAG interface (14 needle)
6, all IO mouth are derivation, plus P3.4 lead to facilitate test card board LED working condition
7, provide 5 V and 3.3 V voltage output, convenient to peripheral modules power supply
Shipping list:
MSP430F169 development board core board x1
TE46
