Chip main function
ARM Cortex-M0 processor
Frequencies up to 50 MHz
32 kB Flash
8 kB of an SRAM
USB 2.0
UART
Standard RS485 transceiver control
8 channel 10-bit ADC
SPI interface
The I2C interface
SWD interface
On-board function
SWD debugging interface (10 Pin 2.0 mm spacing) support JLINK/ULINK2
USB turn UART interface (CP2102, but through the Flash Magic download program)
USB2.0 interface
RS485 interface
IIC EEPROM
A controllable LED
Two keys
10 K adjustable resistance
So I/O leads
2.54 mm double row needles interface can be mounted on universal board
Supporting software-the more detailed information please see the downloadable web page PDF documents
CODE
Blinky: a simple through the timer control program. Flash
UART: test procedures, serial ports will break way of data back to receive the sender.
Timer32: a 32 bit timer control test procedures, LED flash.
WDT: used to test the watchdog relevant API functions.
ADC_Single: through the ADC7 read the AD on adjustable resistance value and print out through a serial port.
The i2c: reading and writing and reading the data EEPROM program through a serial port printed.
USBHID: USB HID type of testing program can through the PC control LED and read information button.
USBCDC: USB CDC kind of testing program can do turn a serial port module USES USB.
USBCDC_RS485: to do USB turn RS485 module USES.
USBMem: USB memory storage example, access upper the chance to add a removable disk.
Shipping list:

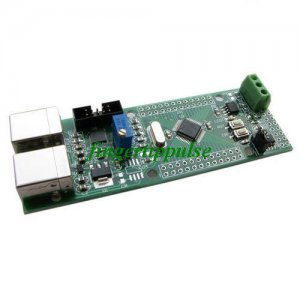

LPC1343 x1 development board
USB line x1
