C8051F500 processor according to AEC-Q100 test standard design has wide working voltage, wide working temperature range, strong anti-interference ability and built-in CAN and LIN bus controller, very suitable for automobile electronic applications.
The processor main parameters
8051 the kernel level car micro controller
The highest frequency 50 MIP
1.8-5.25 V power supply
-40 to + 125 degrees working temperature
Meet AEC-Q100 test standard
64 k Bytes Flash
4352 Bytes RAM
12-bit 200 K ADC
September 11 bit PWM
1 CAN 2.0 B
1 LIN 2.1
1 UART
1 SPI
1 SMBus

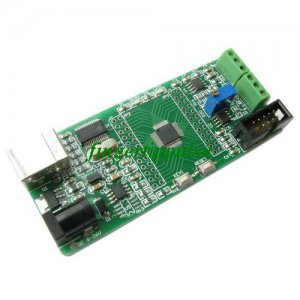

Hardware configuration
USB or 6-26 V wide voltage power supply
10 needle C2 debugging interface
USB turn UART interface
All the way CAN2.0 B interface
All the way LIN2.1 interface
A controllable LED
AD adjustable resistance
By external interruption buttons
24 Cxx serial EEPROM
Plate frame size: 93.5 x 39.5 mm
Supporting software--
CAN test program CAN send and receive data program, according to one of the key development board CAN control the other piece development board LED light and destroy.
LIN test procedures and CAN program is same, according to one of the key development board CAN control the other piece development board LED light and destroy.
Test procedures disruptions and provide UART query test procedure. Way
INT0 test program through the button to test external interruption.
EEPROM test procedure of EEPROM IIC interface way test procedures.
Timer0 test procedures 16 bit way, LED flash control.
ADC the test program will adjustable resistance voltage print to serial interface.
The watchdog test procedures
Internal Flash reading and writing test procedures
PWM test procedures
Note: CAN and LIN tests requires two pieces of development board.
Basic function:
C8051F500 x1 development board
USB printing line x1
CD: attach development development environment and all related routines, use manual, diagram, etc.
