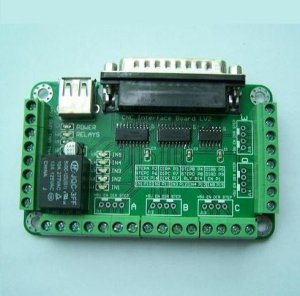

CNC Breakout Board adapter for PC Stepper Motor Driver
CNC interface board, you can make your computer into a powerful CNC controller!
5 axis Breakout board
Compatible: KCAM4 MACH EMC2
Built in DB25 male connector
It is with 4-wire limit switch to insure our safty movement
It is with relay port to contro the cnc spindle
Working voltage is 5VDC and support with MACH3,EMC2,KCAM4 software
Size:9x5.7cm
25-pin parallel port control is defined as follows:
DB25 control pin (PIN)
The pin of the drive board
Comment
1
STEPB
B(Fifth axis)pulse signal
2
STEPX
X(First axis) pulse signal
3
DIRX
X(First axis) direction of the signal
4
STEPY
Y(Secondaxis)pulse signal
5
DIRY
Y(Second axis)direction of the signal
6
STEPZ
Z(Third axis) pulse signal
7
DIRZ
Z(Third axis) direction of the signal
8
STEPA
A(Fourth axis) pulse signal
9
DIRA
A(Fourth axis) direction of the signal
10
LIMIT-1
Limit input interface 1
11
LIMIT-2
Limit input interface 2
12
LIMIT-3
Limit input interface 3
13
LIMIT-4
Limit input interface 4
14
DIRB
B(Fifth axis) direction of the signal
15
Vacant
16
RLY
Relay control
17
EN
All axis enable
18-25
GND
GND
Remark:This 5 axis breakout board can connction with many driver type as a CNC 3/4/5 axis driver controller kit,If needed, please contact us!
Packing list:
1 * 5 Axis Interface Adapter
1 * USB cable
1 * DB25 Parallel Cable
