Product parameters:
1. Very easy to use, no instructions, all of use are marked on the board
2. Definitely use the new chips imported from Japan, Toshiba TB6560
3. With large heat sink to ensure good heat dissipation
4. Input signal high-speed optocoupler isolation, guarantee not losing steps
5. Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting function
6. Attenuation model adjusted for all the motors can be locked when no noise
7. Ultra-small, the overall size: 62mm * 75mm, installation of four mechanical positioning hole size: 65mm * 55, hole size Φ3mm
8. The form of stud-type connectors and an optional plug-in
Rated voltage: DC 12V-24V
Maximum current: 3.5A
Current adjustable (Current Settings):
0.5A, 1A, 1.5A, 1.8A, 2A.2.5A, 3.5A
Subdivision adjustable (Excitation Mode):
1,2,8,16
Attenuation adjustable (Decay Mode):
0 %---- no decay mode
--- 25% of the slow decay mode
--- 50% of the normal mode
100% - Fast Decay mode
----- Decay mode of regulation by different motors to match impedance, thereby eliminating the noise when locked stepper motor and motor movement in the shake.
Automatic half current setting (Torque Settings):
%---- No pulse when the current 20 to normal operating current of 20%
50 %---- no pulse current 50% to normal operating current
75 %---- no pulse current 75% to normal operating current
100% --- no pulse when the current 100% to normal operating current
Packing list:

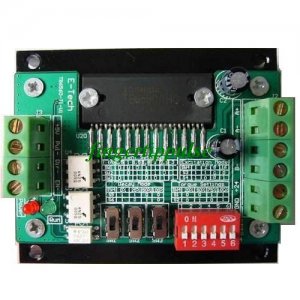

1 * Single Axis 3.5A TB6560 Stepper Motor Driver
3 * Terminals
