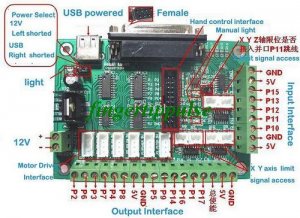

6 Axis Breakout Board Interface FR Stepper Motor Driver
CNC 6 axis Breakout Board adapter for PC Stepper Motor Driver
CNC interface board, you can make your computer into a powerful CNC controller!
Features:
* Full support for MACH3, KCAM4, EMC2 and other support for PC parallel port control software.
* Open all of the 17 parallel data pins. Can control up to six-axis drive.
* Output a signal with three-state bus transceiver chip shaping function (74HC244), with load capacity of ± 25mA. Data transfer speeds of up to 10MBit / S.
* Manual output interface, the board has integrated pulse generator, a mechanical switch can be achieved as long as the connection manual.
* Limit switch connected directly with the logic circuit, logic circuit in the extreme position, forced off to the extreme position of movement of the step pulse, only the direction of the movement away from the limit switch. Parallel to save valuable resources.
Remark: This 6 axis breakout board can connction with many driver type as a CNC 3/4/5 axis driver controller kit,If needed, please contact us!
Packing list:
1 * 6 Axis CNC Breakout Board Interface
Enough terminals
TE90
