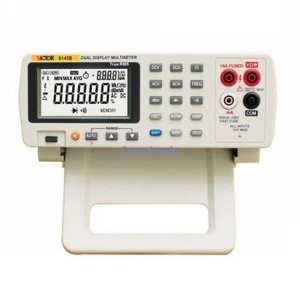

l 33000-count digital reading primary display,high accuracy of 0.03% for DC voltage measurement.
l Measure:
DC voltage,AC voltage,DC current,AC current,resistance,frequency,continuity test,diode test,decibel(dB),minimum or maximum and average measurement,relative value measurement and compare measurement.
l Can measure 1000V high voltage,10A current,100MΩ resistance,30MHz frequency.
l Instrument can communicate with computer through USB interface,through which computer can control,monitor in strument and store the measured data of instrument.
Basic function Range Accuracy Input impedance
DC Voltage
300mV/3V/30V/300V/1000V
±(0.03%+5)
AC Voltage
300mV/3V/30V/300V/750V
±(0.5%+50)
DC Current
0.3mA/3mA/30mA/300mA/10A
±(0.05%+3)
AC Current
30mA/300mA/10A
±(0.5%+30)
Resistance
300Ω/3kΩ/30kΩ/300kΩ/3MΩ/30MΩ/100M Ω
±(0.05%+3)
Frequency
300Hz/3kHz/30kHz/300kHz/3MHz/30MHz
±(0.03%+2)
CONTINUITY
Range
Continuous Resistance
Open Circuit Voltage
Short Circuit Current
Max.input voltage
300Ω
150Ω
2.5V
About 1.25mA
250VDC/RMSAC
Diode test
Range
Accuracy
Max.measuring current
Max.measuring current
Max.input voltage
3.0000V
1%
≤2V
About 1.25mA
250VDC/RMSAC
We only accept the payment through Paypal. Payment should be made within 7 days after the order placed.
The item(s) will be shipped by Airmail with Insurance from Hong Kong. The item(s) will be sent within 2 working days after payment received.
Approximate Delivery Time
Delivery Time Countries
7 ~ 12 days United States, United Kingdom, Canada, Australia and New Zealand
7 ~ 15 days Germany, France, Spain, Italy, Netherlands, Belgium, Austria and Switzerland
7 ~ 15 days Rest of the world
*Delivery time might be longer if the item(s) be inspected by customs*
Return Policy
If you receive defective item(s), please kindly notify us within 7 days. We will guide you the returning instruction for replacement. The item(s) must be returned with fully packed material without being used.
The returning shipping cost will be your expenses by Registered Airmail. Once we receive your returning unit, we will investigate the unit within 7 days. We will then send you a brand new replacement unit at our shipping cost.
Custom Taxes
A small parcel would be less likely imposed taxes or duties by customs. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying.
Model number:97
