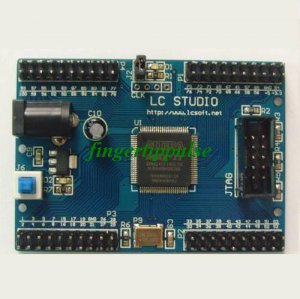

Altera MAX II EPM240 CPLD development board board experiment study board
1, on-board EPM240T100C5 chip
2, on-board JTAG interface
3, on-board 50 MHZ active crystals
4, with a programmable leds
5, take 5 V turn 3.3 V chips AMS1117 3.3
6, 5 V power supply with the switch
7, all IO all leads
8, board size 5 CM * 7 CM
Shipping list:
EPM240 development board x 1
