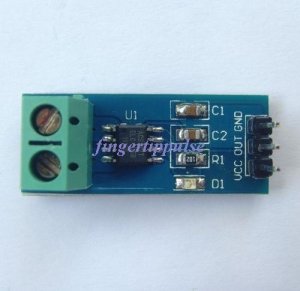

5A range ACS712 module current sensor module

TS0024

1, the current sensor chips: ACS712ELC-05B;

2, pin 5V power supply, on-board power indicator;

3, the module can measure the positive and negative 5 amps, corresponding to the analog output 185mV / A;

4, no test current through the output voltage is VCC / 2;

5, PCB board size: 31 (mm) x13 (mm);

Note: ACS712 is based on the principle of the Hall test, please use this field to avoid an impact!

Package Including

1pcs x ACS712 module (5A)
