TS0010
Dallas Semiconductor DS1820 digital temperature sensor is a support of the world's first "bus line" interface, the temperature sensor. Bus line features a unique and economical, allowing users to easily set up the sensor network, the construction of measurement system introduces a new concept. Now, a new generation of "DS18B20" smaller, more economical and more flexible. Allows you to give full play to "bus line" strengths.
Specification
3.0V ~ 5.5V power supply
9 to 12-bit adjustable resolution
Wide temperature range -55 *C ~ +125 *C
No external components, the unique single-bus interface
Output leads: red (VCC), blue (DATA), black (GND)

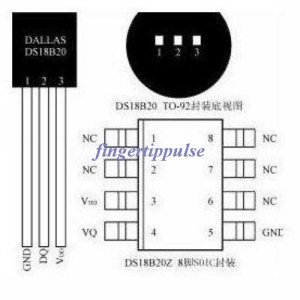

PIN DESCRIPTION
GND - Ground
DQ - Data In/Out
VDD - Power Supply Voltage
NC - No Connect
Applications:
Applications include thermostatic controls, industrial systems, consumer products, thermometers, or any thermally sensitive system.
Package Including
10pcs x Temperature Sensor DS18B20
