Brief Description

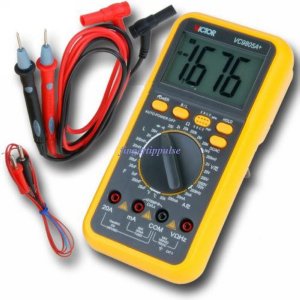

This Professional Digital Multimeter (VC9805A) is made by VICTOR brand. It is a high performance, stable and accurate instrument with large 42mm-high backlight LCD display to measure DC and AC voltage, DC and AC current, Resistance, Capacitance, Inductance, Temperature, Frequency, Transistor, Diode, Triode and Continuity Test.
The designed parameter include: unit indication, data hold (HOLD), auto off and buzzer sounds. The instrument takes dual-integral A/D converter as a key point, this multimeter is most suitable for use on production lines or lab, R & D, maintenance and repairing work.
Features
Dual-slope DC/AC converter CMOS technology for auto-zero, polarity selection and over-range indication.
Full overload protection
New type holster, streamline design
3 ½ digit Large LCD Display
Metallic screen board with stronger antimagnetic and anti-interferential function.
Full function protection, anti-high voltage circuit design.
Low battery display indication
General Specifications
Display: 3 ½ digit Large LCD with a max readings of 1999.
Auto Polarity indication
Measuring method: Dual-slope A/D Transfer
Sampling Rate: approx. 3 Times / Second
Over range indication: MSD displays "1" / "OL" or "-1" / "-OL"
Safety Standards: CE; IEC1010
Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
Operating Humidity: below 80% RH
Storage Temperature: -10 ~ 50 °C (14 ~ 122 °F)
Storage Humidity: below 80% RH
Low battery display auto turn off (after turn on 15 minutes)
Power: 1 x 9 V PP3 battery (not included)
Dimensions: 190 (H) x 93.5 (W) x 37 (D) mm (7.48' x 3.68' x 1.46' inch)
Weight: approx. 448g (15.8 oz)
Electrical Specifications
Accuracy is ±(percentage of reading + number of digit) at (23±5) °C,
