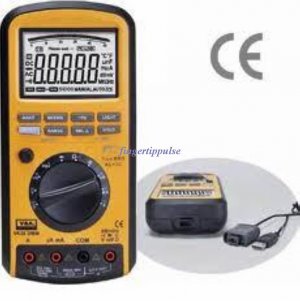

This multimeters are rugged and reliable, hand-held or system instruments for maintenance, initial start-up, training and R&D in industry, for government authorities, in the test lab, in manufacturing and quality assurance, as well as at universities.
SPECIFICATIONS
Basic Functions
Range
Accuracy
DC Voltage
50mV/500mV/5V/50V/500V/1000V
±(0.03%+10)
AC Voltage
50mV/500mV/5V/50V/500V/1000V
±(0.5%+40)
DC Current
500μA/5000μA/50mA/500mA/5A/10A
±(0.15%+15)
AC Current
500μA/5000μA/50mA/500mA/5A/10A
±(0.75%+20)
Resistance
500Ω/5KΩ/50KΩ/500KΩ/5MΩ
50MΩ
(±0.1%+10)
(±0.5%+10)
Capacitance
50nF/500nF/5μF/50μF
500μF/5000μF
±(1%+5)
±(2%+5)
Line Frequency
5Hz~200KHz
±(0.006%+4)
Pulse Frequency
5Hz~2MHz
±(0.006%+4)
Duty Cycle
5%~95%
±(2%+5)
Diode
0~2.5V
±(1%+5)
Special Functions:
Display: 50000 counts
True RMS Measurenent DC/AC/DC+AC Measure
Diode test
Duty Cycle
Back Light
360°Directions Display
General Characteristics
Power : 1.5V AAA x 6 ( not included )
LCD Size: 64x42
Product Size: 205x97x45
Standard Individual Packing: Gift Box
Standard Accessories:
● Free carrying bag
●High quality double insulation test leads
● User's manual
●Free USB interface cable
● Free software
We only accept the payment through Paypal. Payment should be made within 7 days after the order placed.
The item(s) will be shipped by Airmail with Insurance from Hong Kong. The item(s) will be sent within 2 working days after payment received.
Approximate Delivery Time
Delivery Time Countries
7 ~ 12 days United States, United Kingdom, Canada, Australia and New Zealand
7 ~ 15 days Germany, France, Spain, Italy, Netherlands, Belgium, Austria and Switzerland
7 ~ 15 days Rest of the world
*Delivery time might be longer if the item(s) be inspected by customs*
Return Policy
If you receive defective item(s), please kindly notify us within 7 days. We will guide you the returning instruction for replacement. The item(s) must be returned with fully packed material without being used.
The returning shipping cost will be your expenses by Registered Airmail. Once we receive your returning unit, we will investigate the unit within 7 days. We will then send you a brand new replacement unit at our shipping cost.
Custom Taxes
A small parcel would be less likely imposed taxes or duties by customs. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying.
Model number:93
