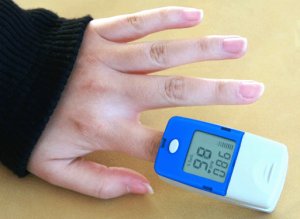

New CE Proved Fingertip Pulse Oximeter SPO2 monitor
Major Features
■Integrated with SpO2 probe and processing display module
■Small in volume、light in weight and convenient in carrying
■Operation of the product is simple ,low power consumption
■SpO2 value display
■Pulse rate value display, bar graph display
■Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage
■Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe
Main performance
Display Mode: Segment LCD display
SpO2 Measuring Range: 0%～100%, (the resolution is 1%).
Accuracy: 70%～100%: ±2% ,Below 70% unspecified.
PR Measuring Range: 30bpm～250bpm, (the resolution is 1bpm)
Accuracy: ±2bpm or ±2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Power Consumption: less than 20mA
Voltage: DC 3.0V
Power Supply: 1.5V (AAA size) alkaline batteries × 2
Battery Working Hour: The minimum continually work time is 30 hours,theoretical number is 42 hours.
Safety Type:Interior Battery, BF Type
Accessories
Sell in standard:
■A hanging rope
■A user manual
Physical Identity
Dimension: 66(L) × 36(W) × 33(H) mm
Weight: About 50g (with the batteries)
Qualification
Passed CE
